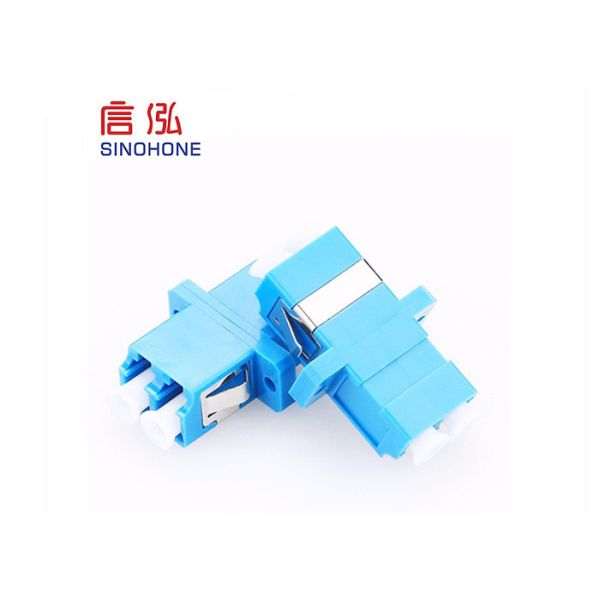

Name: LC Fiber Optic Cable Adapter Single Multimode Fiber Optic Patch Cables
Brand: SINOHONE
Price: 1 USD

Brand Name : SINOHONE

Model Number : LC

Certification : ISO9001 CPR FCC CE RoHS

Place of Origin : Sichuan, China

MOQ : 1000 piece

Price : USD $0.36~$0.38 / pieces

Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram

Supply Ability : 500000 pieces per month

Delivery Time : 5-8 work days

Packaging Details : Standard packing in sealed box or according to customers' requirements

Product Name : LC Fiber Optic Adapter

Standard : YD/T-1272.3

Connection Type : Plug

Applications : Optical, CATV

Storage Temperature : -45~85℃

Operating Temperature : -45~75℃

Contact Now

Telecommunication LC Fiber Optic Adapter For Fiber Optic Patch Cord Single And Multi-mode

Features:

Applications:

Specifications:

Parameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	>1000				>1000			>1000
Operating Temperature	°C	-40~75				-40~75			-40~75
Storage Temperature	°C	-45~85				-45~85			-45~85

LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
